SEM Thermo Magellan 400 L

Extreme High Resolution scanning electron microscope with integrated EDX system   /   FEI

Contacts :   DUPUIS   Christophe     /   MAHUT   Frédéric

Location : SB044-E342

eXtra High Resolution Scanning Electron Microscope. Equipped with a STEM detector, an EDS INCA system and a vCD detector (for BSED at low voltage).

  • Space
    Magellan
  • Space
    Colonne
  • Space
    Système de clampage du Porte échantillon
  • Space
    Vue générale
  • Space
    Platine Piezo et colonne 68°

Caractéristiques

  • Resolution   :   0.9 nm @ 1kV
  • Max sample size   :   4 inches wafers, 5 inches photomask
  • Stage   :   5 axis compucentric piezo stage, deceleration
  • Detectors   :   SE (ETD, TLD), BSE (vCD), EDS X-Max (50mm^2), STEM
  • Electron gun   :   FEG Schottky (+"UniColor" monochromator)
  • Objective lens   :   Field Free (Search mode), Immersion
  • Voltage   :   200V - 30kV
  • Current   :   1.6 pA to 100 nA
  • Resolution   :   STEM mode: 1nm@30kV
  • Magnification   :   x30 to 2000000x (Polaroïd)
  • Others   :   Anticontaminator (cold trap), plasma cleaner
  • Others   :   Autoloader
  • Others   :   Column Elstar (no mechanical alignment)
Expertises

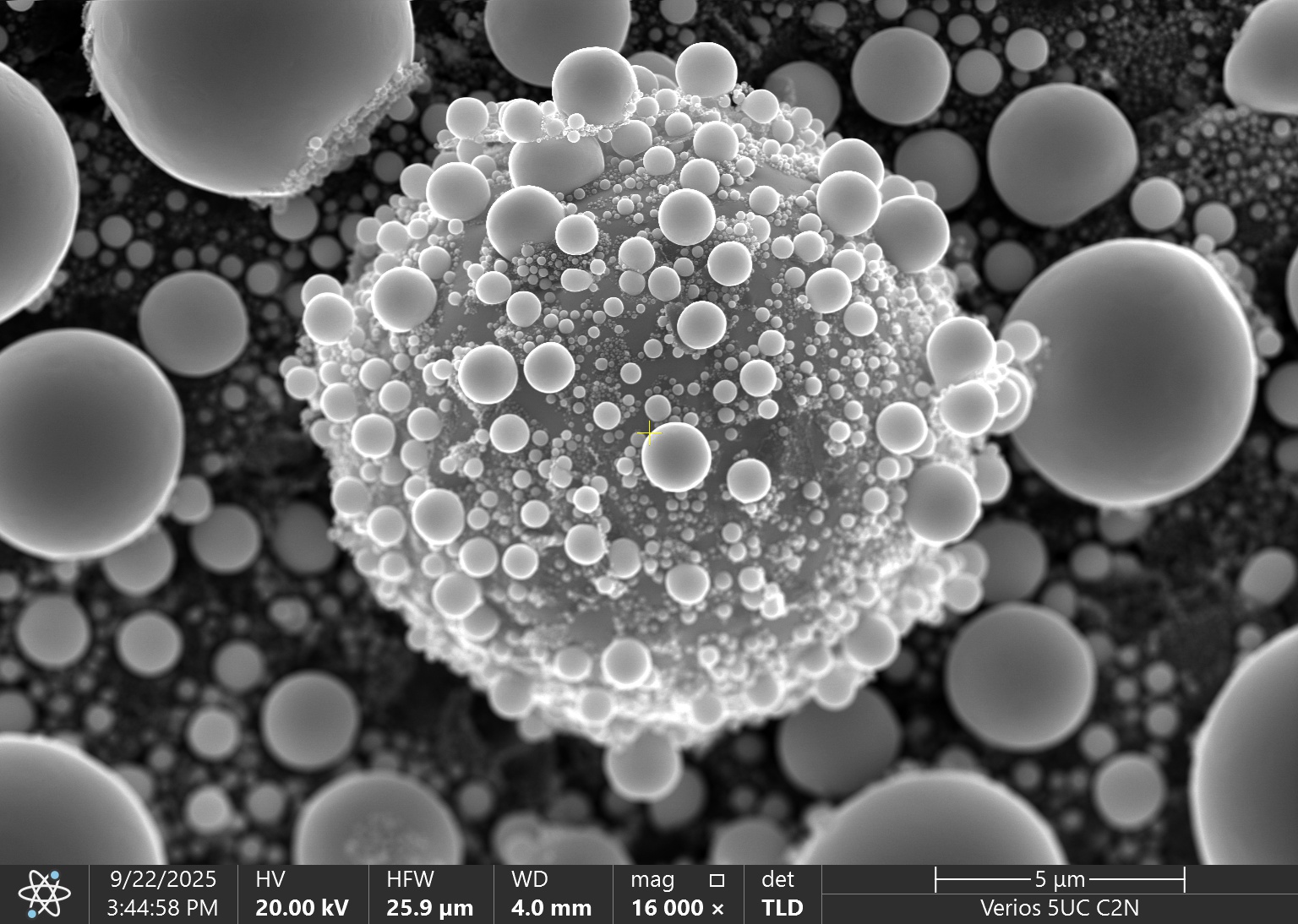

XHR observation on tin beads

Reference sample for automatic calibration of the microscope with tin beads. Search (field free) & Immersion +UC Modes

  • Space
  • Space
  • Space

Contacts : Christophe DUPUIS, Frédéric MAHUT

Observation of photoresists

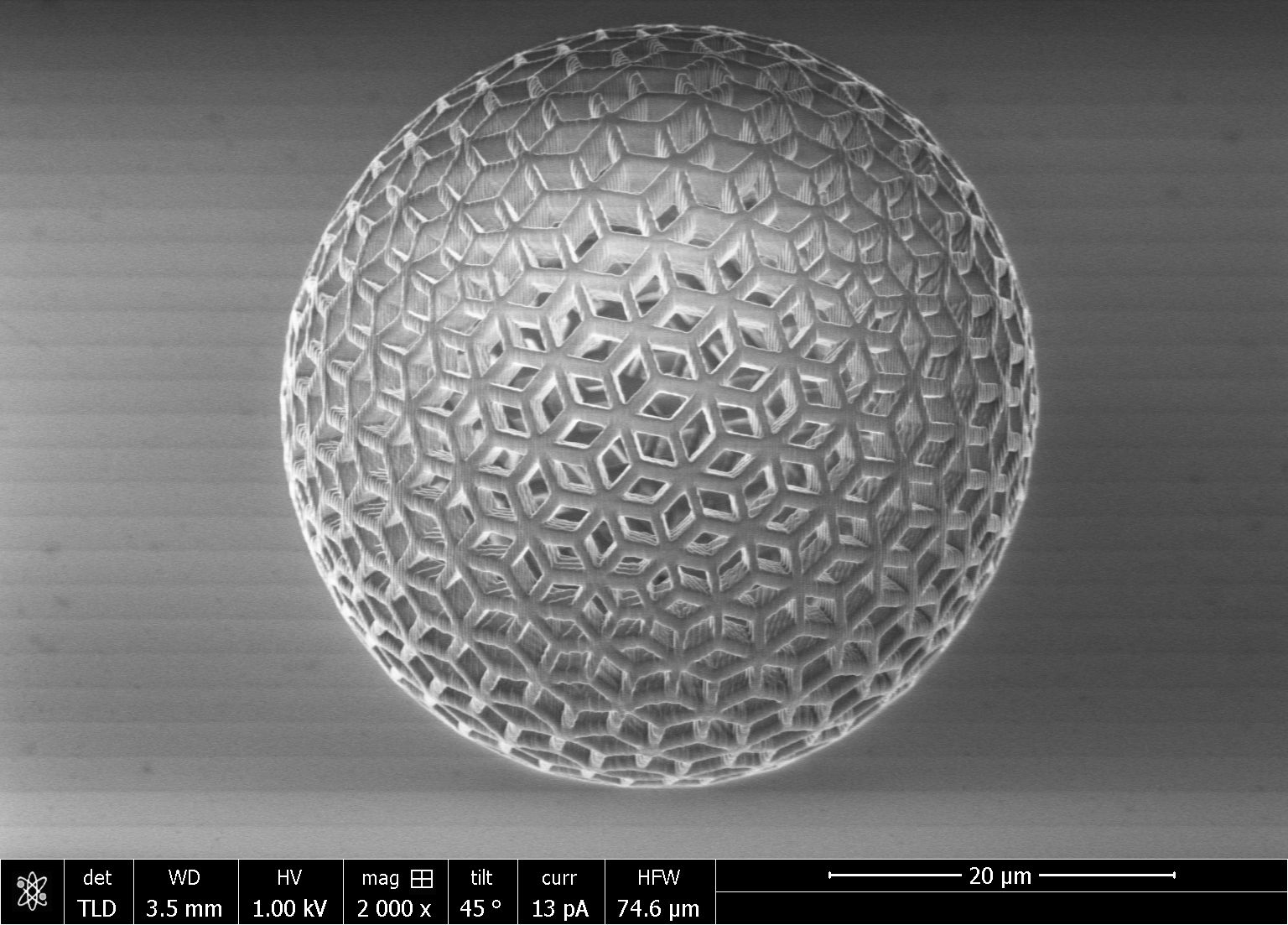

Low dose é imaging of spin-coated Photoresist layers and 3D lithography grown micro-structures (polymer)

  • Space

Contacts : Christophe DUPUIS, Frédéric Mahut

EDX analyzes

EDX analyzes (ponctuals, by regions of interest and mapping)

  • Space
  • Space

Contacts : Christophe DUPUIS - Frédéric MAHUT

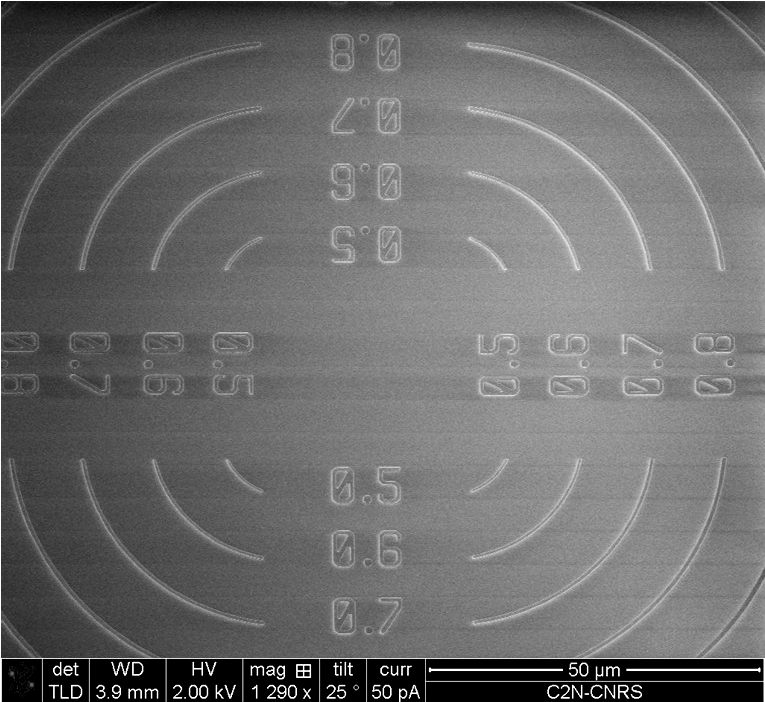

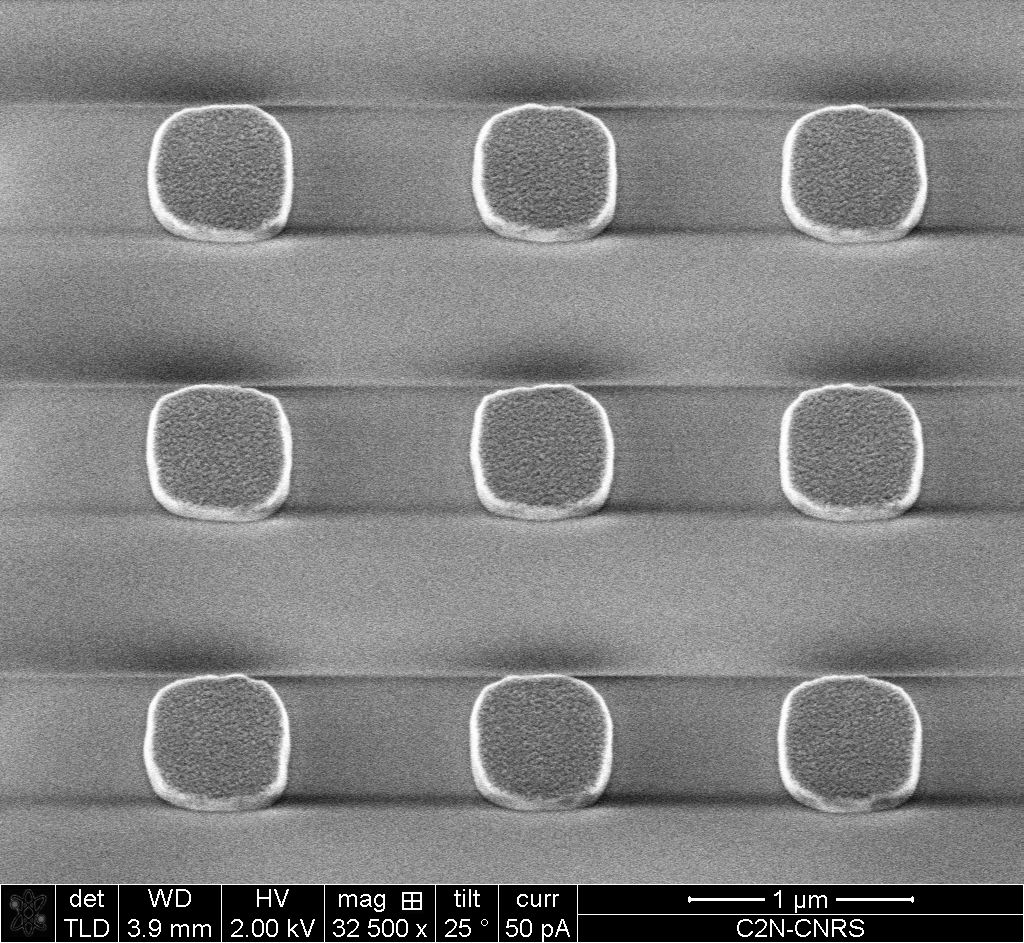

Mask observation

Observation of Chrome Patterns in Lithographic Masks

  • Space
  • Space

Contacts : Christophe DUPUIS, Frédéric Mahut

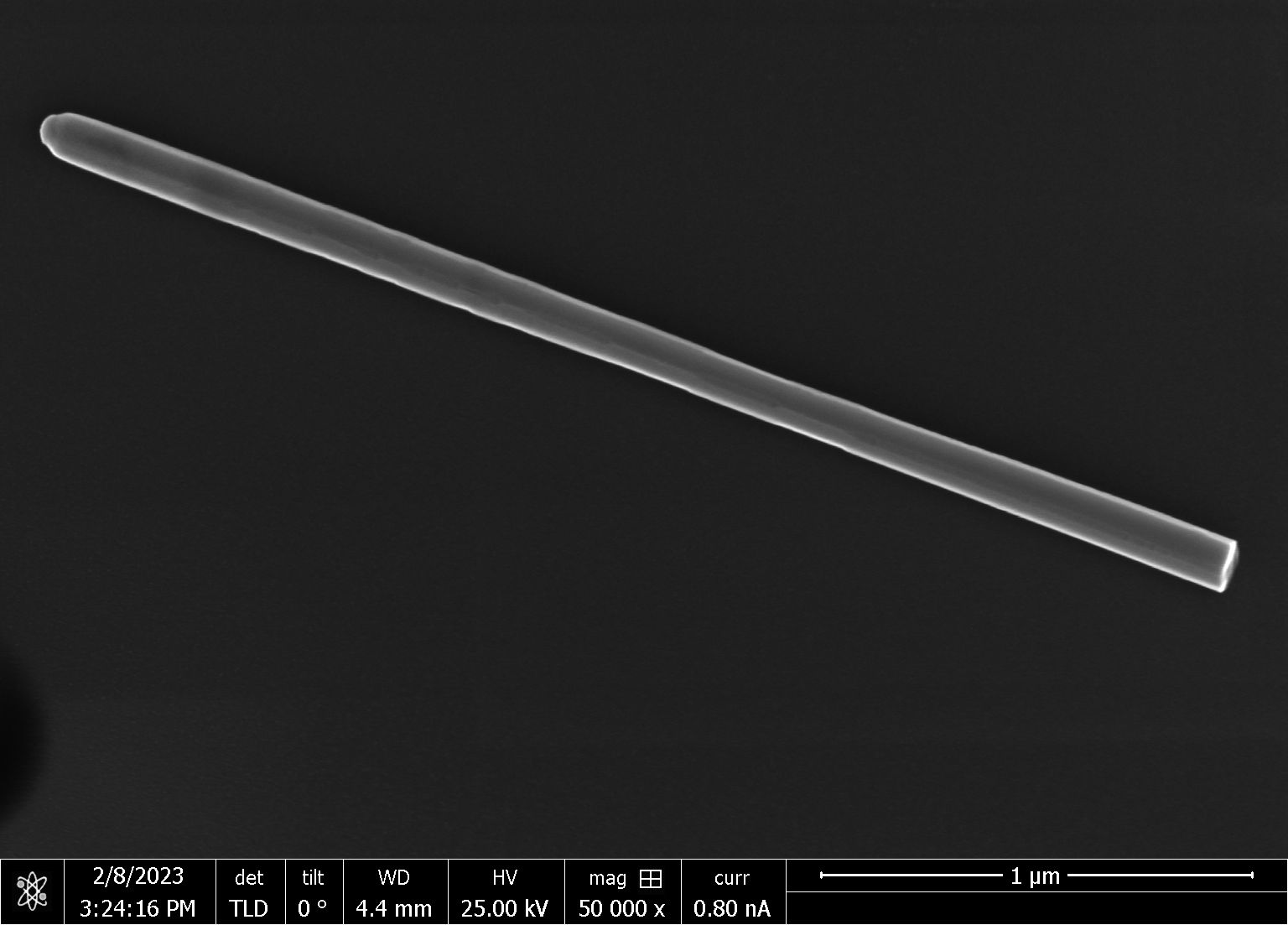

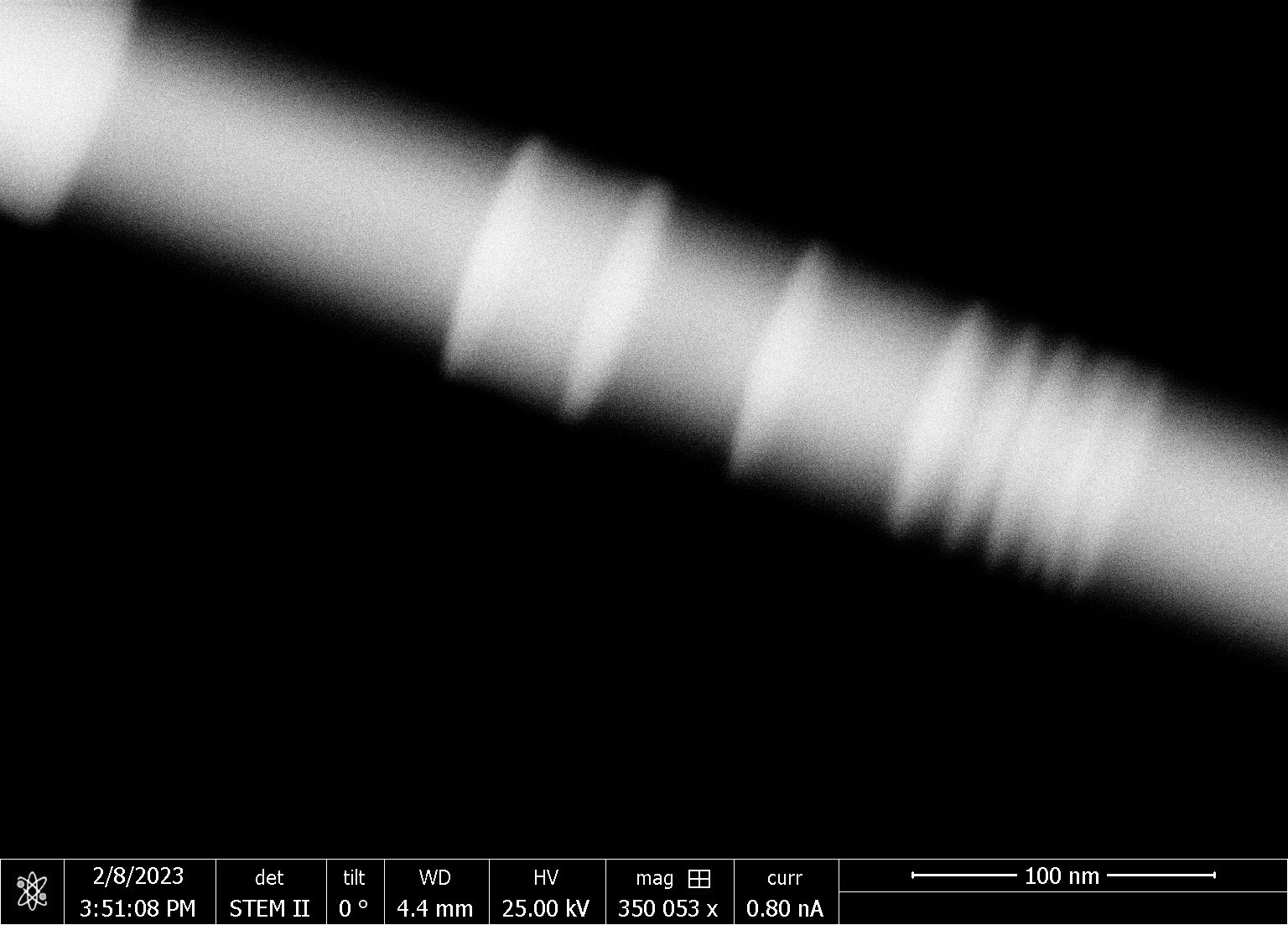

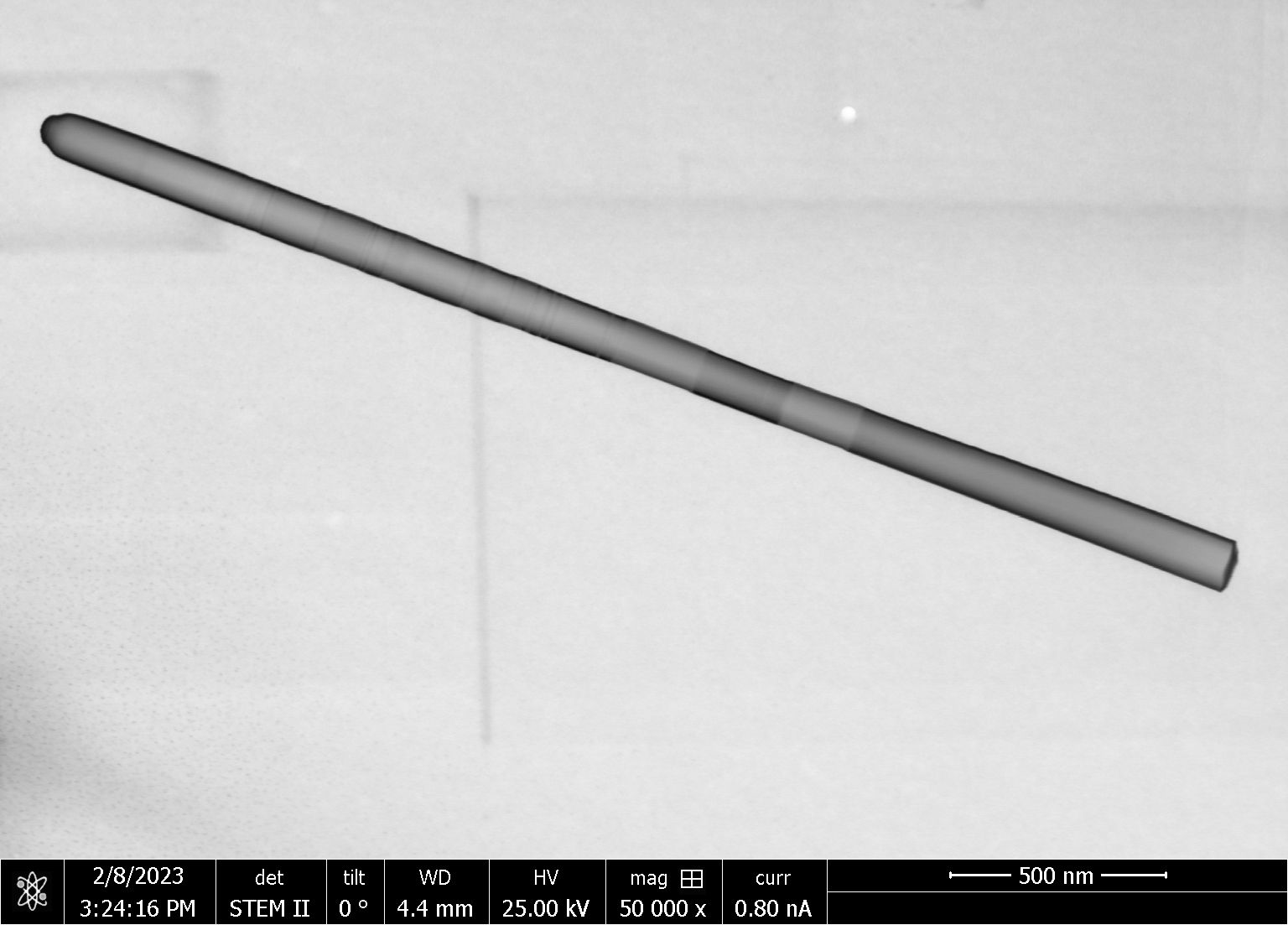

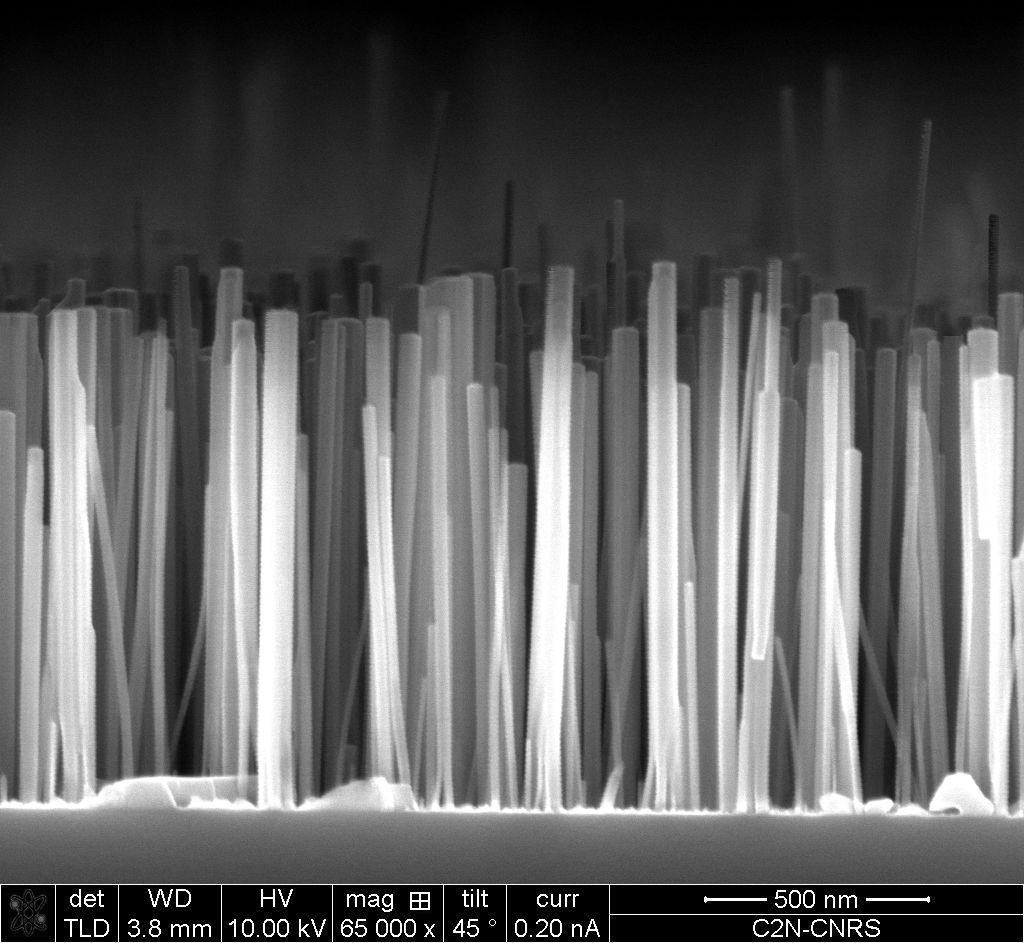

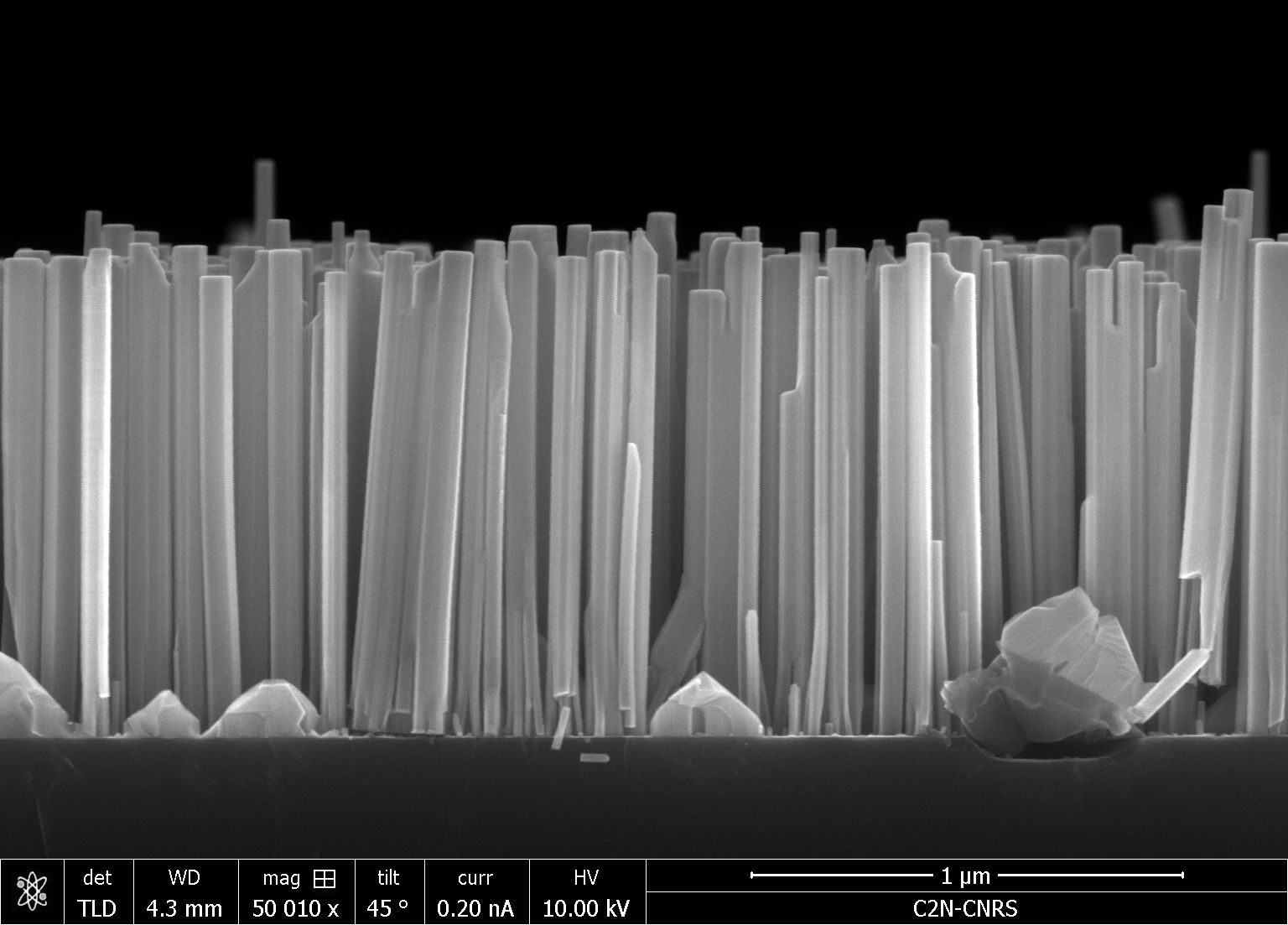

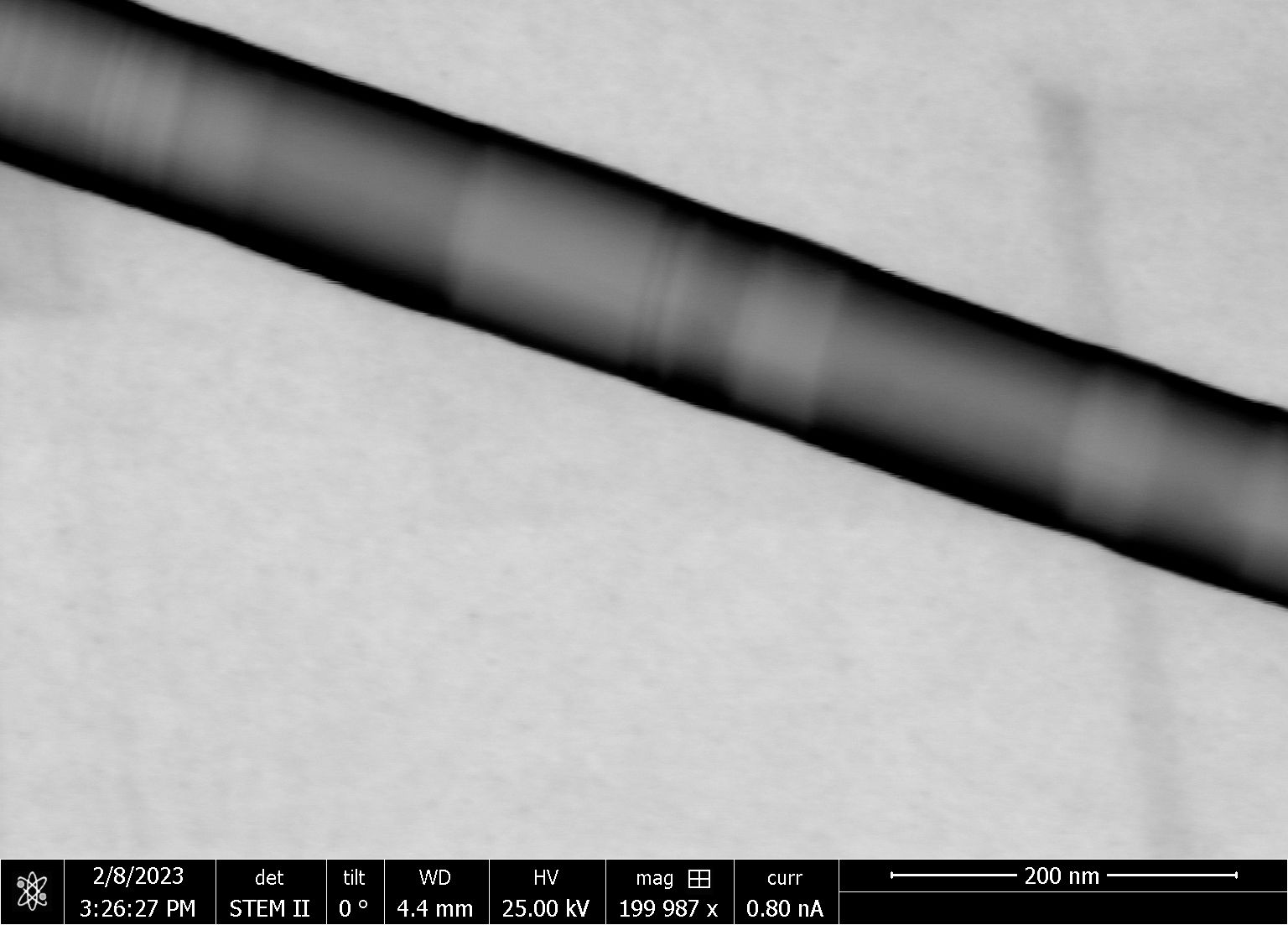

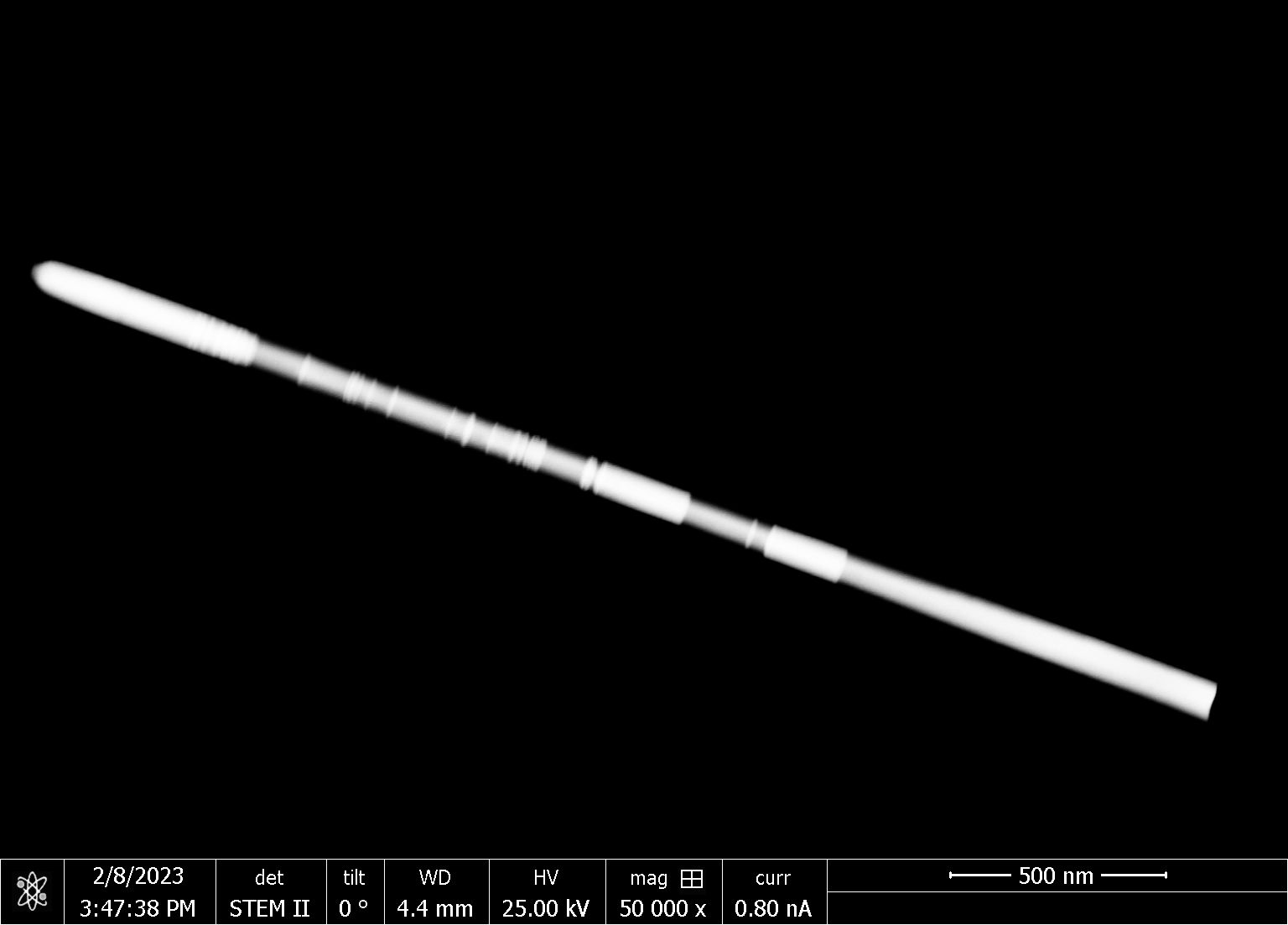

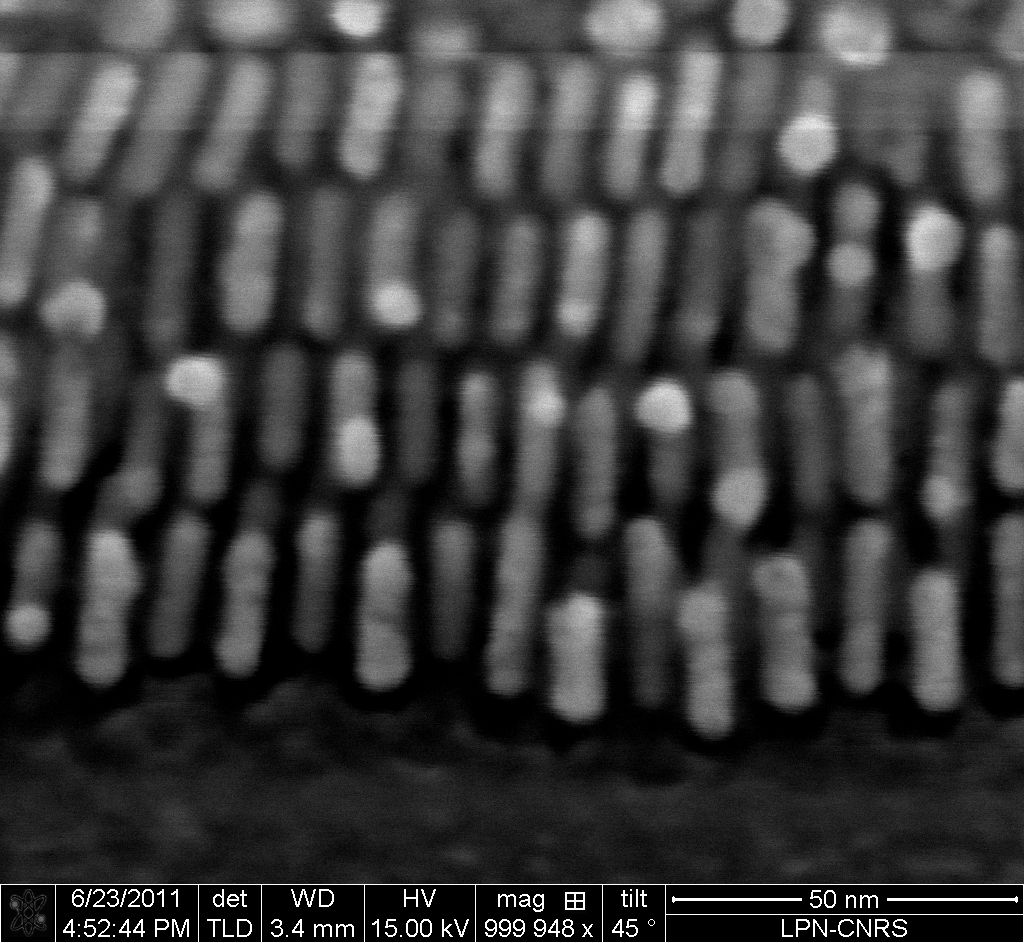

Observation of nanostructures with SE, STEM

Nanowires (incl. stacking faults), Quantum dots, Nanorods, Nanofoams ...

  • Space
  • Space
  • Space
  • Space
  • Space
  • Space
  • Space
  • Space

Contacts : Christophe DUPUIS, Frédéric Mahut

Dupuis/Mahut

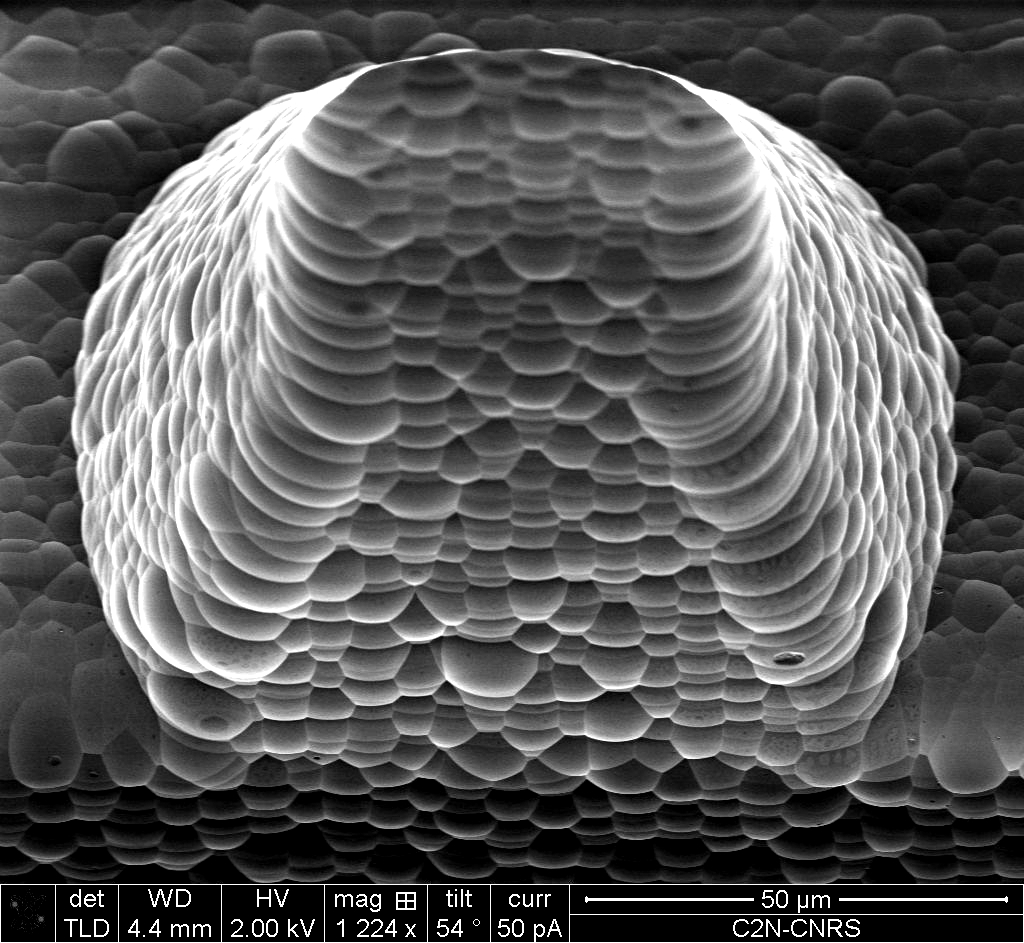

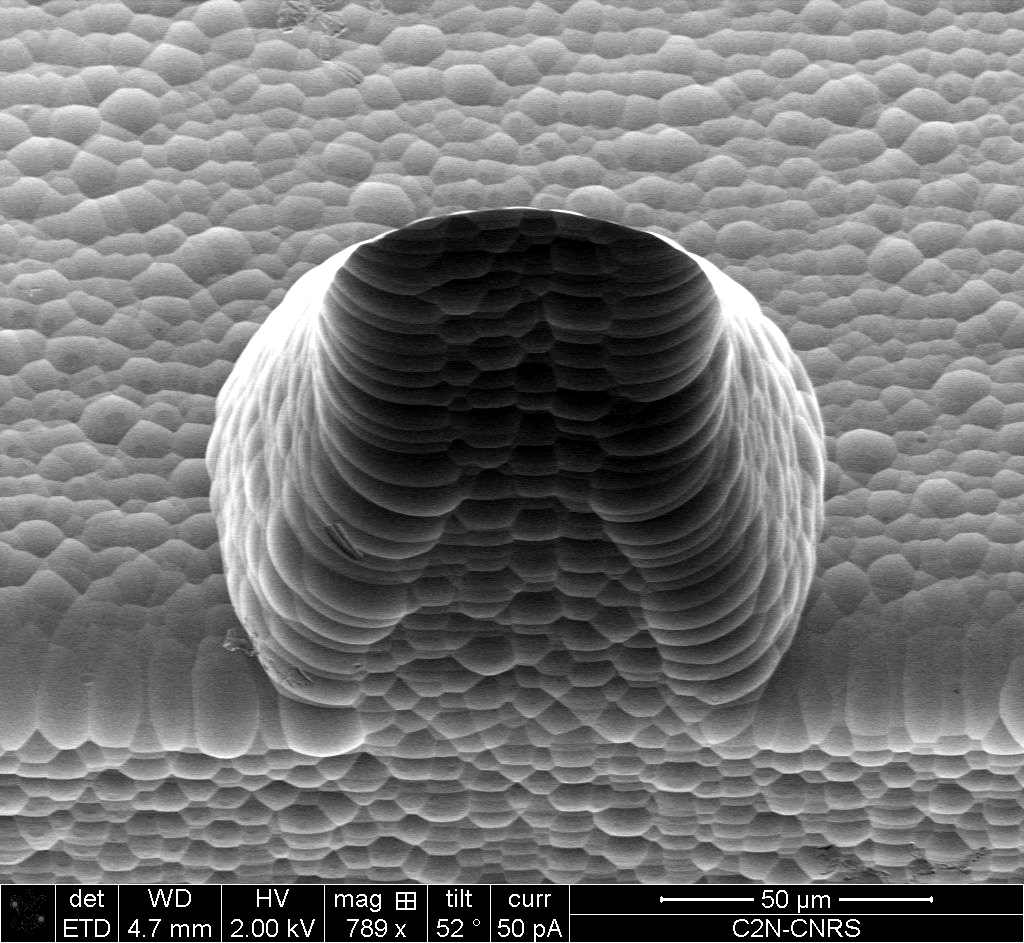

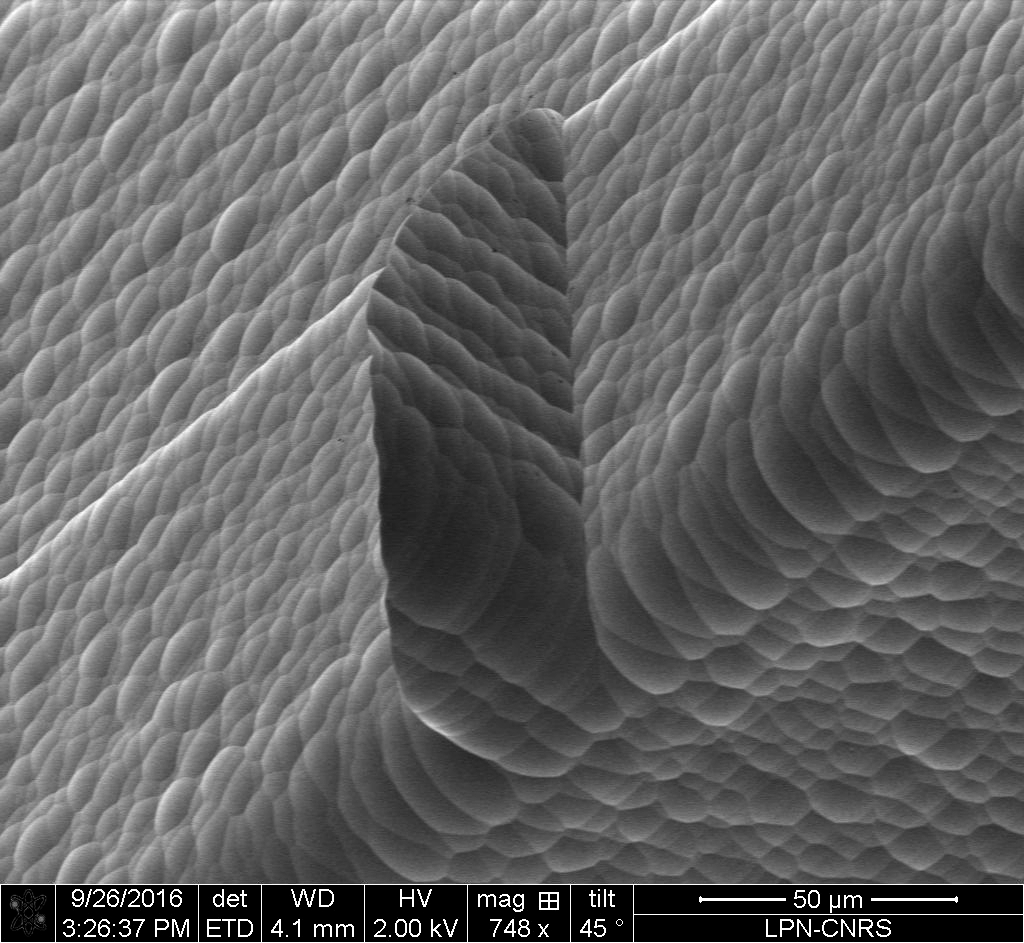

Usinage Laser dans du verre

  • Space
  • Space
  • Space

Contacts : Christophe DUPUIS - Frédéric MAHUT

Dupuis/Mahut

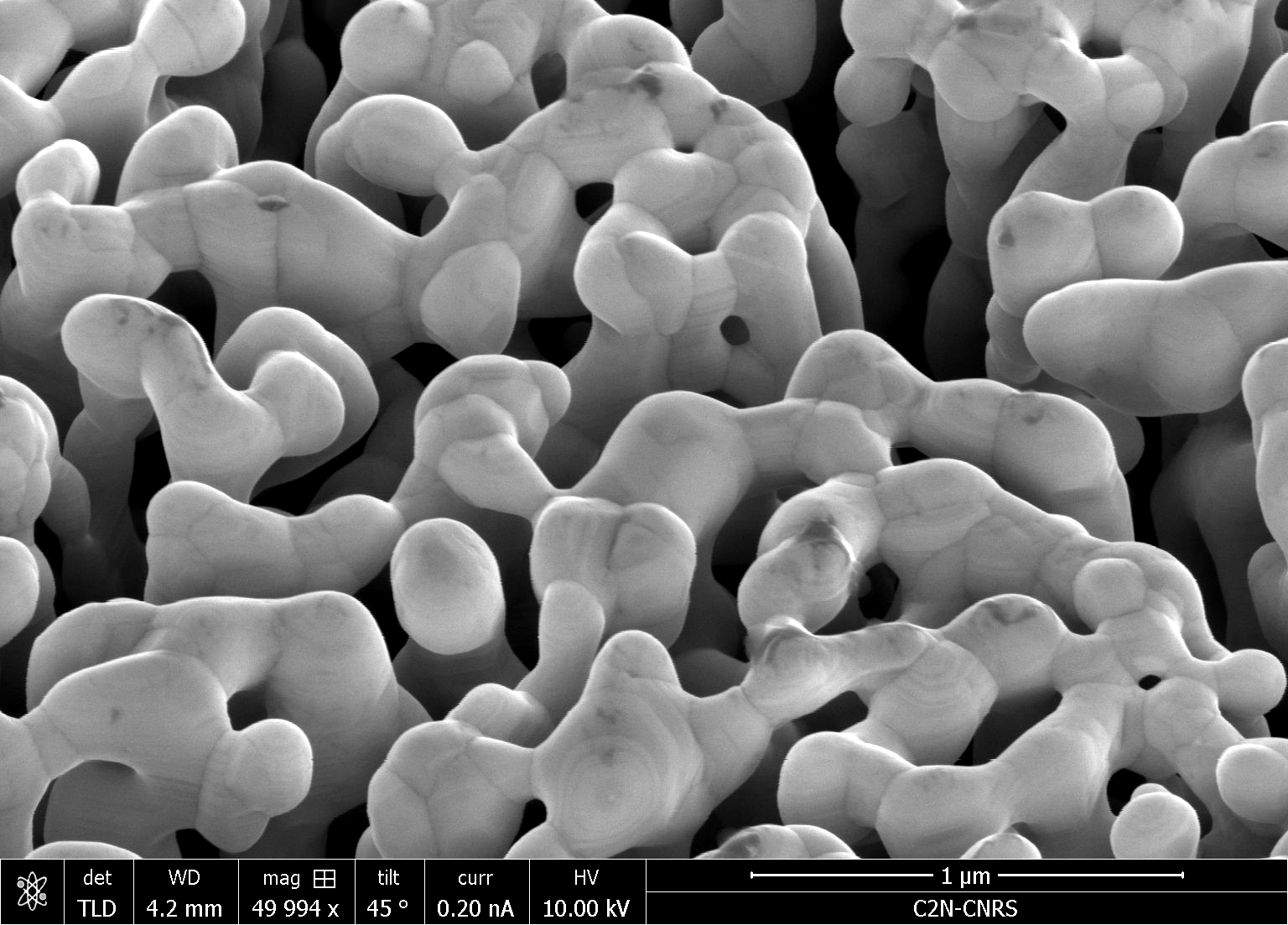

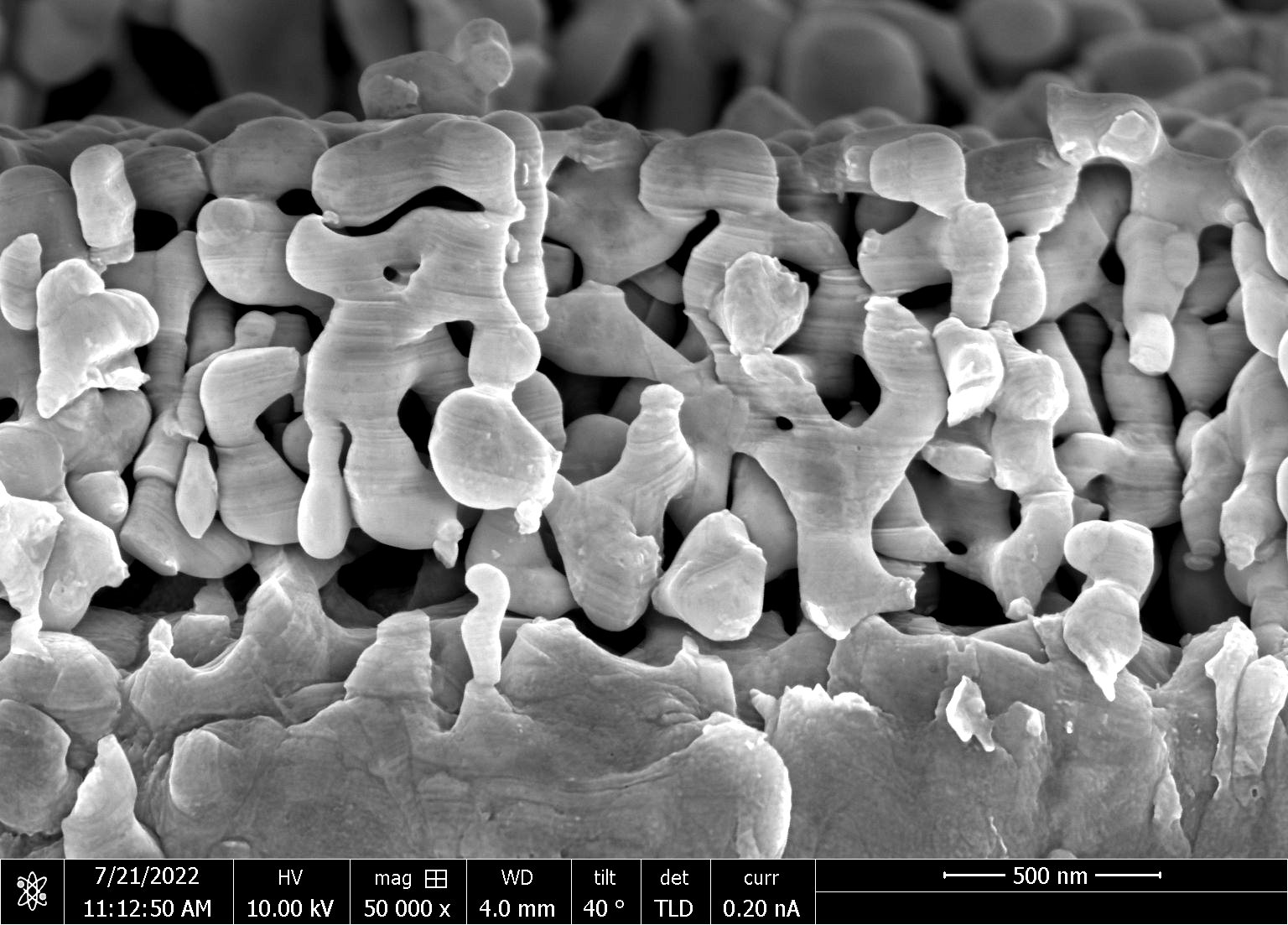

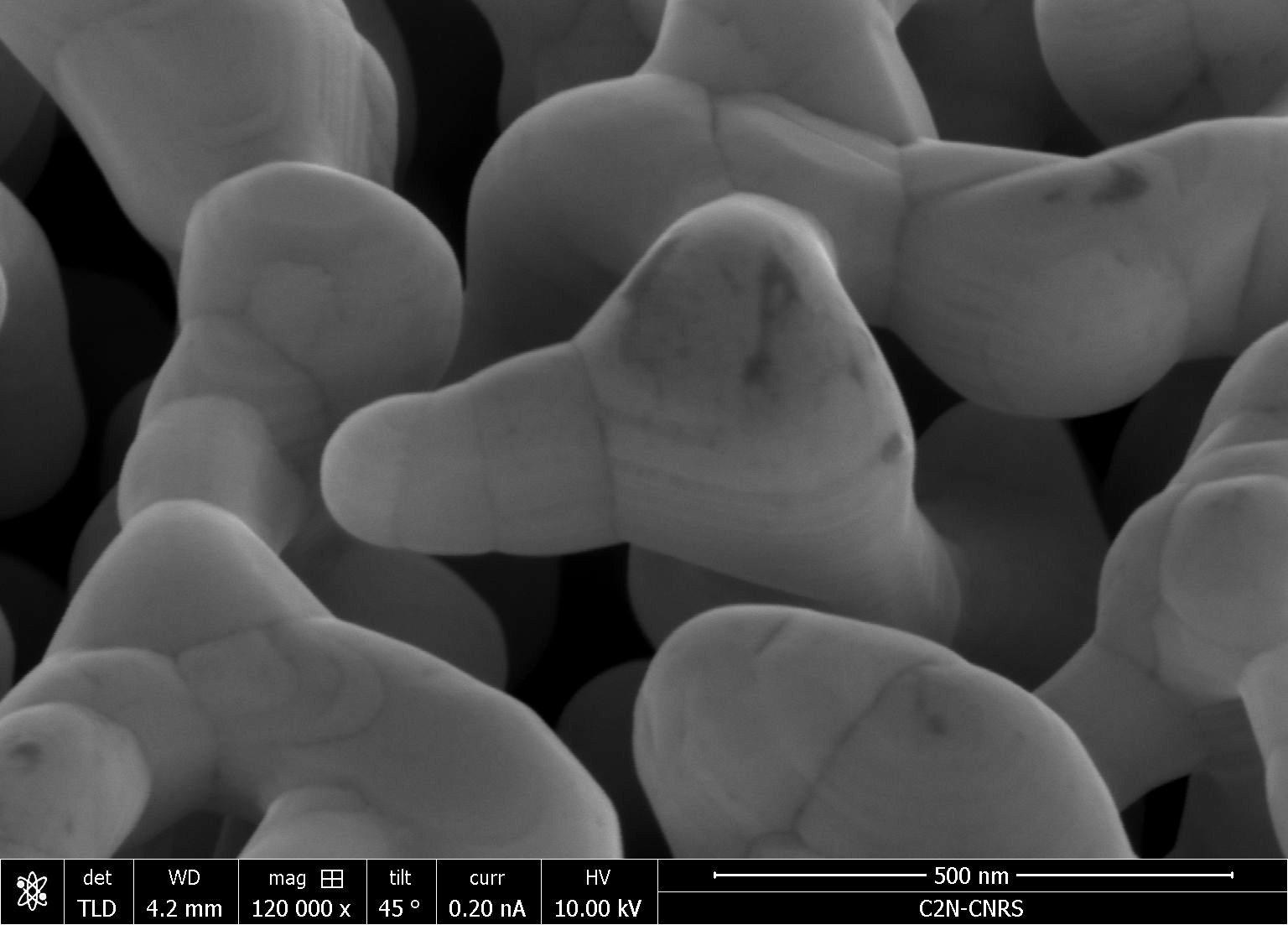

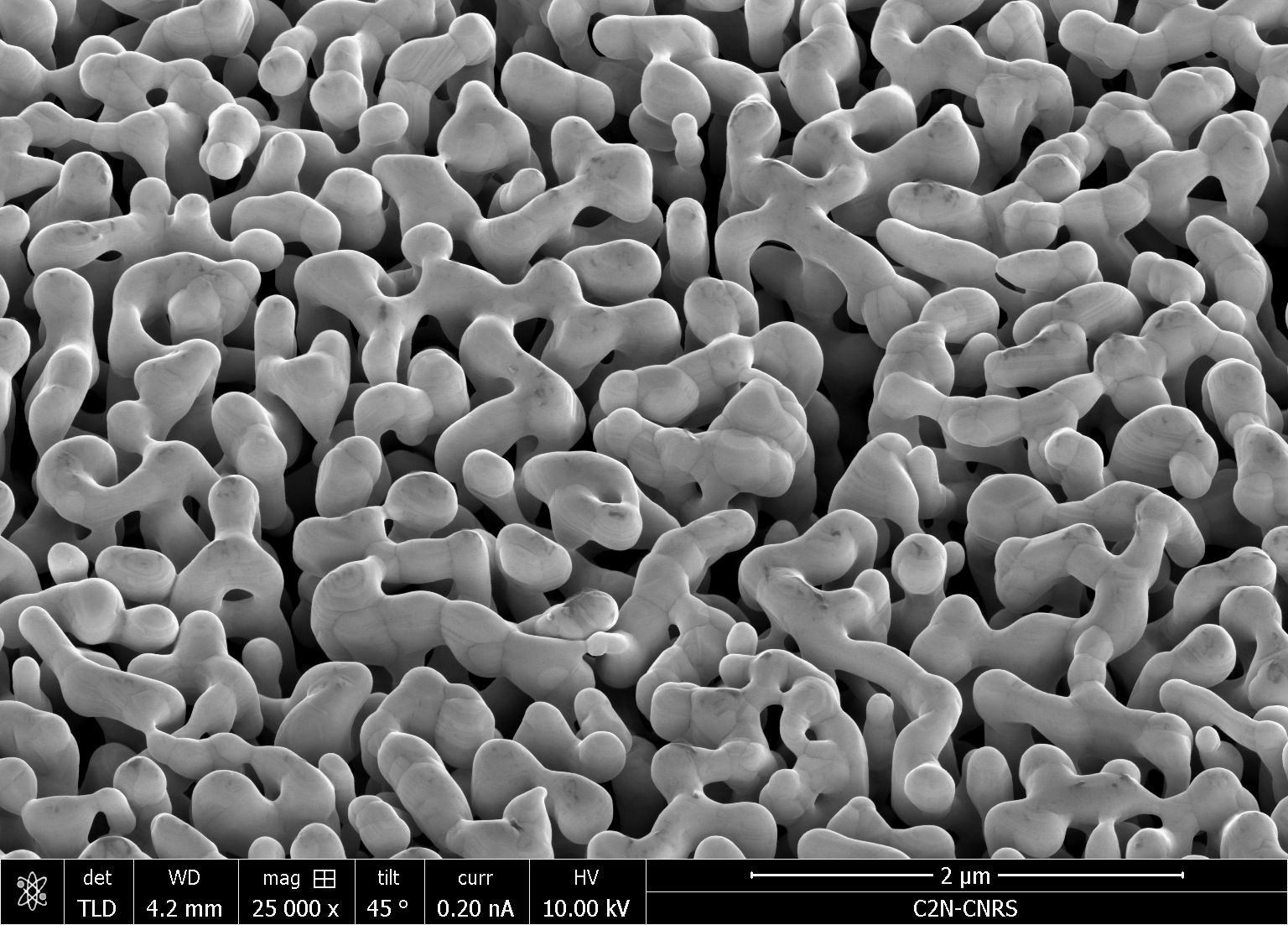

Formation de Nanopores Au après gravure humide de l'alliage Au-Ag

  • Space
  • Space
  • Space
  • Space

Contacts : Christophe DUPUIS - Frédéric MAHUT

Applications

Piezo eucentric stage

View of the stage movements inside the microscope. This piezo turntable allows precise and rapid movements over a wide range of distance.

  • Space
  • Space

Contacts : Fabien BAYLE
